MP50A Solar Charge Controller MPPT Solar Panel Controller DSP control WIFI Optional

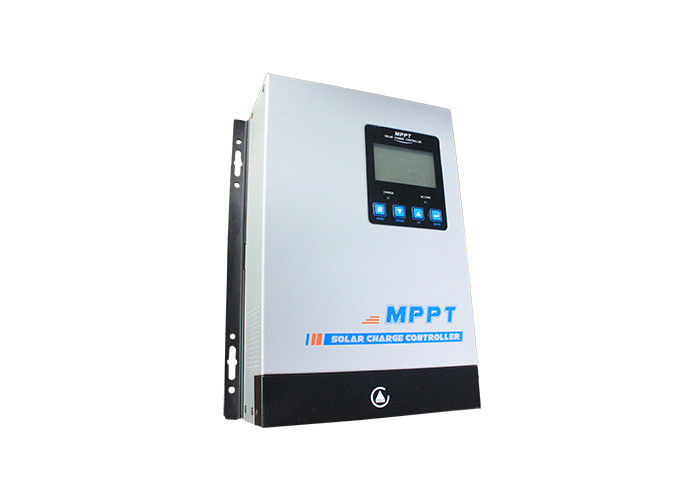

JET-MP50A MPPT Solar Charge Controller
MPPT voltage generating real-time detection of solar panels to track the highest voltage and current (vi) adjusting the electrical module through extension work state, so that the maximum power output of the system to charge the battery.
Solar Charge Controller can be widely used for various applications, e.g. solar RV, household system and industrial field monitoring, etc. The controller uses advanced software active algorithm for quickly and accurately tracking the maximum power point of photovoltaic panels module voltage, active tracking work at the maximum power point of the solar cell module in order to get more solar energy. Enhance the charging current and power generation.
- Applicable to 12V/24V/36V/48V/96V battery pack system, user can set the output voltage and current according to actual need.
- High-speed and high-performance design, great for solar charging use
- Simple operation interface: clear LCD color display the current, power, charging time, etc.
- Accurately recognizing and tracking of multiple power point
- Battery over discharge / Battery reverse polarity / Load overload protection
Specification
| Model | | MP20A | MP30A | MP40A | MP50A | MP60A | MP80A | MP100A | MP120A |
| Work Voltage | 12V System | 18~80VDC |
| 24V System | 30~100VDC |
| 36V System | 40~100VDC |
| 48V System | 60~150VDC |
| 96V System | 120~200VDC |
| Max PV Voltage | 12/24/36/48/96V | 200VDC |
| Max PV Power | 12V System | 280W | 420W | 570W | 700W | 900W | 1140W | 1400W | 1800W |
| 24V System | 550W | 840W | 1130W | 1400W | 1700W | 2260W | 2800W | 3400W |
| 36V System | 840W | 1260W | 1710W | 2100W | 2700W | 3420W | 4200W | 5400W |
| 48V System | 1100W | 1650W | 2270W | 2800W | 3400W | 4540W | 5600W | 6800W |
| 96V System | 2240@ | 3360W | 4560W | 5600W | 7200W | 9120W | 11200W | 14400W |
| Connected Battery Type | 12/24/36/48/96V | VRLA/AGM/GEL |
| Rate Current | 20A | 30A | 40A | 50A | 60A | 80A | 100A | 120A |
| Max Charge Current | 22A | 32A | 42A | 52A | 62A | 82A | 102A | 122A |
| Max Efficiency | ≥ 99% |
| Temperature Compensation | -3mV/℃ |
| Charging Mode | 3-stage: Constance Current (MPPT), Uniform, Float |
| High Temperature Protection | 90℃ |
| LCD Display | PV Voltage, Charge Current, Battery Voltage, Realtime Power Generation, Daily Power Generation, Total Power Generation |
| LED Indication | Charge Light, DC Output Light |
| Communication Port | RS485 (optional) |
| Working Environment | < 90%RH Non-condensate, working at -20~60℃, storing at -20~60℃, Attitude 0~3500m |
| Dimension (mm) | 191x215x89 | 230x279x91 | 230x304x91 | 303x436x138 |
| Net Weight (kgs) | 2.2 | 3.2 | 3.4 | 10.5 |
| Protection Grade | IP31 |
Service
1, Support imprint your logo on products and let your logo shine anywhere
2, OEM/ODM orders available if quantity appropriate
3, We own the best after-sale service. If any problem happens, our team will do our best to solve it.
4, We can ship products by sea, by air and by Courier
Packaging and Delivery
1, Aluminum box and carton box, careful and tight package, make sure the package is intact during delivery.
2, The package will be shipped by DHL/FedEx/TNT/EMS/UPS/Special line, which can be specified in the order.
3, The shipping time is different, it depends on the distance between us, and the quantity ordered.
